Automatic Horizontal Decanter Centrifuges Calcium Carbonate Dewatering Machine
Main advantages
1. Continuous feeding, separating and discharging
2. Low energy consumptionApplication
3. Simple operation and easy maintenance
4. CE, ISO, TUV
Allocations
| Property | Description |
| Drive type | Dual drive.Two motors,belt connection |
| Frequency inverters | Dual frequency inverters, ABB, SAMCO or equivalent brand |
| Bearing | SKF or NSK imported |
| Bowl material | SS304/SS316L/DSS2205 with centrifugal casting/forging |
| Scroll material | SS304/SS316L |
| Screw conveyor | SS304/SS316L |
| Screw distribution | SS304/SS316L |
| Flights material | SS304/SS316L |
| Feeding nozzle | SS304/SS316L |
| Big and small end | SS304/SS316L/DSS2205 with forging |
| Top lid material | SS304/SS316L |
| Frame material | CS with painting |
| Paint system | Epoxy paint 25-35um,2nd coating |
| Gear box | Planetary /cycloidal |
| Screw | TC sprayed /flight tiled |
| Pond depth adjustment | Weir plates |
| Differential speed | adjustable |
| Control panel | CS with painting |
| Bowl discharge outlets | Ceramic plates/harden plates ,replaceable |
| Protection class | IP54/IP55 |
| O ring and Gasket | Viton/Buna N |
| Lubrication-bearing | Manual grease lubrication |
| Lubrication-gearbox | Manual lubricant (grease) |
| Certificates supply | Material certificates |
| Bowl/conveyor detecting report |
| Welding report |
| Heat treatment report |
| Balancing report |
| Commissioning report with empty and water load |
| Optional |
| Control box | SS panel |
| With PLC |
| Sensors | Temperature,vibration,noise etc. |
| Solid discharge | 360 degree |
| Drive type | Second motor direct connection with coupling |
Basic principles
For the auto decanter centrifuges stable performance sludge dewatering separator, the continuous feeding, separating and discharging can be realized as it rotates at its full speed. It is characterized by compact structure, easy obturation, smooth running, low noises, large handling capacity, low energy consumption, high automation, small working strength, simple operation and easy maintenance, and wide applications.
Structure
1. Feeding pipe 2. Discharge screw 3. Drum 4. Casing 5. Differential mechanism
Working principle
The drum and the spiral feeder rotate in the same direction but with a certain speed difference; the material
is led into the feeding spiral inner cylinder via the feeding pipe and, after speeding pipe and, after speeding
up, enters the drum; under the action of the centrifugal force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; the solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and, after dehydration in the drying area, is discharged out of the machine. The machine is capable of continuous feeding, separating, dehydrating and discharging under full-speed running.
Technical parameters

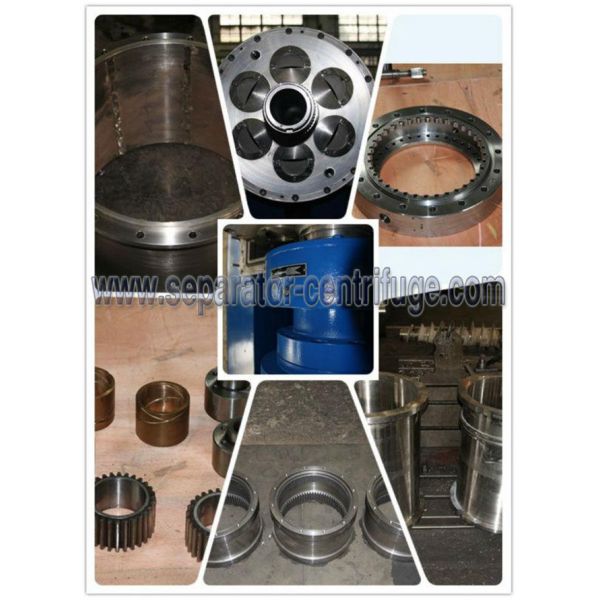

More pictures
Packaging
Guarantee
Peony Machinery has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
